A small crack near a window, a sticky door, or a slightly uneven floor does not always mean your house is sinking like a disaster movie. Sometimes it is minor movement, humidity, or just an older house being an older house.

But the same symptoms can also point to foundation settlement, poor drainage, expansive clay, soil movement, or structural distress.

The mistake many homeowners make is jumping straight to repair methods: piers, foam lifting, crack injection, wall anchors. From an engineering point of view, that is backwards.

If you are worried about disruption during the work, read our guide on whether you can live in a house during foundation repair.

---

Quick Answer: What Is Foundation Repair?

Foundation repair means fixing problems that affect the stability, level, or durability of a home’s foundation.

Depending on the cause, repair may involve crack sealing, drainage correction, slab lifting, underpinning, helical piers, push piers, wall anchors, carbon-fibre reinforcement, waterproofing, or soil moisture control.

Most US foundation repair projects cost about $2,000 to $8,000, but major structural repairs can exceed $10,000 to $25,000+.

---

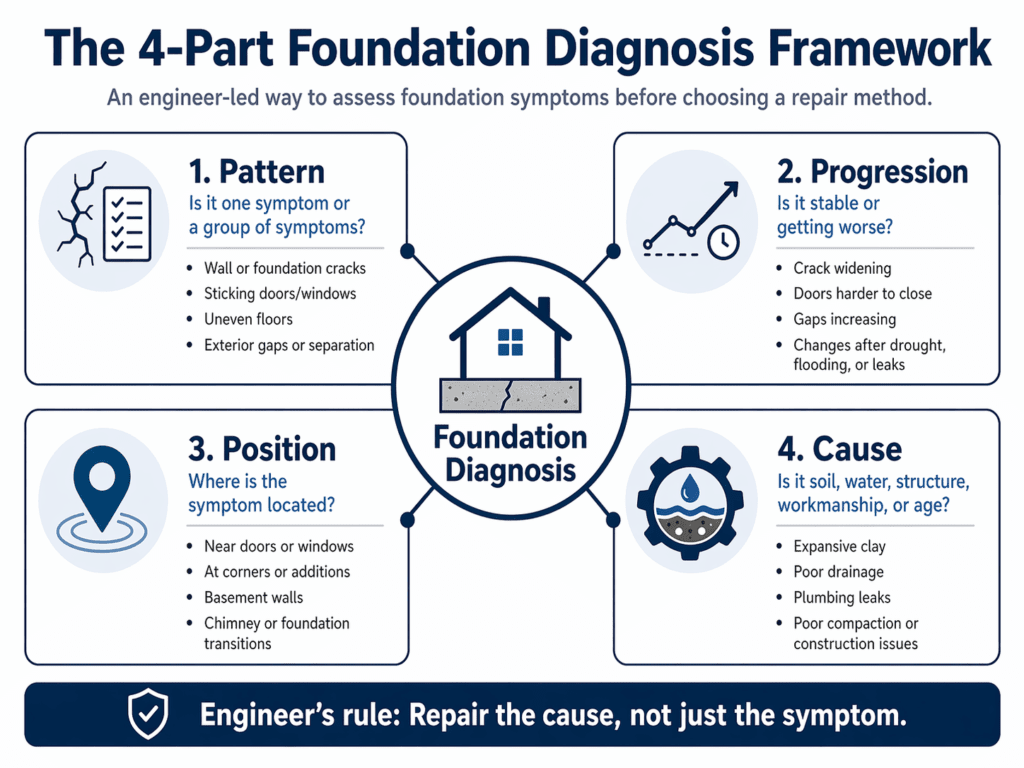

The 4-Part Foundation Diagnosis Framework

Before thinking about piers, underpinning, lifting, or crack injection, judge the problem using four questions.

The 4-Part Engineer Diagnosis Framework

Before buying piers or signing repair contracts, ask these four questions.

1. Pattern

Is it one isolated issue, or several symptoms in the same area?

Example:

• Stair-step crack
• Sticky door
• Sloped floor
• Exterior wall gap

That combination tells a bigger story than one crack alone.

2. Progression

Is it stable, or getting worse?

Ask:

• Is the crack wider than last year?
• Are doors harder to close?
• Are gaps increasing?
• Did symptoms appear after drought, flooding, excavation, or leaks?

Movement over time is one of the most important clues.

3. Position

Where is the problem located?

Location matters.

• Window corner diagonal crack = possible movement
• Horizontal basement crack = possible soil pressure
• Garage slab settlement = possible void or poor compaction
• Addition crack = movement between old and new structures

4. Cause

What is driving it?

Usually one or more of these:

• Expansive clay
• Poor drainage
• Plumbing leaks
• Poor compaction
• Erosion
• Tree moisture changes
• Frost action
• Weak construction detailing

---

Common Signs of Foundation Problems

Foundation movement often appears first in the rest of the house. The foundation moves, and the finishes, openings, walls, floors, masonry, and trim reveal the evidence.

Symptom	Lower concern when…	Higher concern when…
Hairline drywall crack	Isolated and stable	Widening, diagonal, or repeated after repair
Sticking door	Seasonal humidity issue	Several doors suddenly misalign
Brick crack	Small isolated mortar crack	Stair-step crack grows over time
Uneven floor	Old and unchanged	New, worsening, or localised
Basement wall crack	Small vertical crack	Horizontal crack or bowing wall
Window gap	Minor trim separation	Gap grows with wall movement
Foundation crack	Thin and unchanged	Leaking, displaced, widening, or active
Chimney separation	Very slight and stable	Visible gap increasing from house wall

A single symptom does not automatically mean foundation failure. The concern increases when several symptoms appear together or when the symptoms are progressing.

---

Foundation Severity Checklist

Use this as an initial screening tool. It does not replace inspection, but it helps you decide how seriously to treat the issue.

Observation	Concern Level	What it may suggest	Next step
One small hairline drywall crack	Low	Shrinkage or normal movement	Monitor
Small vertical concrete crack, no leakage	Low to medium	Shrinkage/minor movement	Monitor or seal
Crack that reopens after repair	Medium	Movement may still be active	Investigate
Diagonal crack from door/window corner	Medium	Differential movement possible	Document and inspect
Stair-step crack in brick/block	Medium to high	Foundation movement possible	Professional assessment
Sloping floor with sticking doors	High	Active or historic movement	Inspection recommended
Horizontal basement wall crack	High	Lateral soil/water pressure	Call engineer
Bowing or leaning foundation wall	High	Structural wall distress	Urgent assessment
Chimney separating from house	High	Differential settlement possible	Inspection recommended
Rapidly widening cracks	High	Active movement	Call professional promptly

---

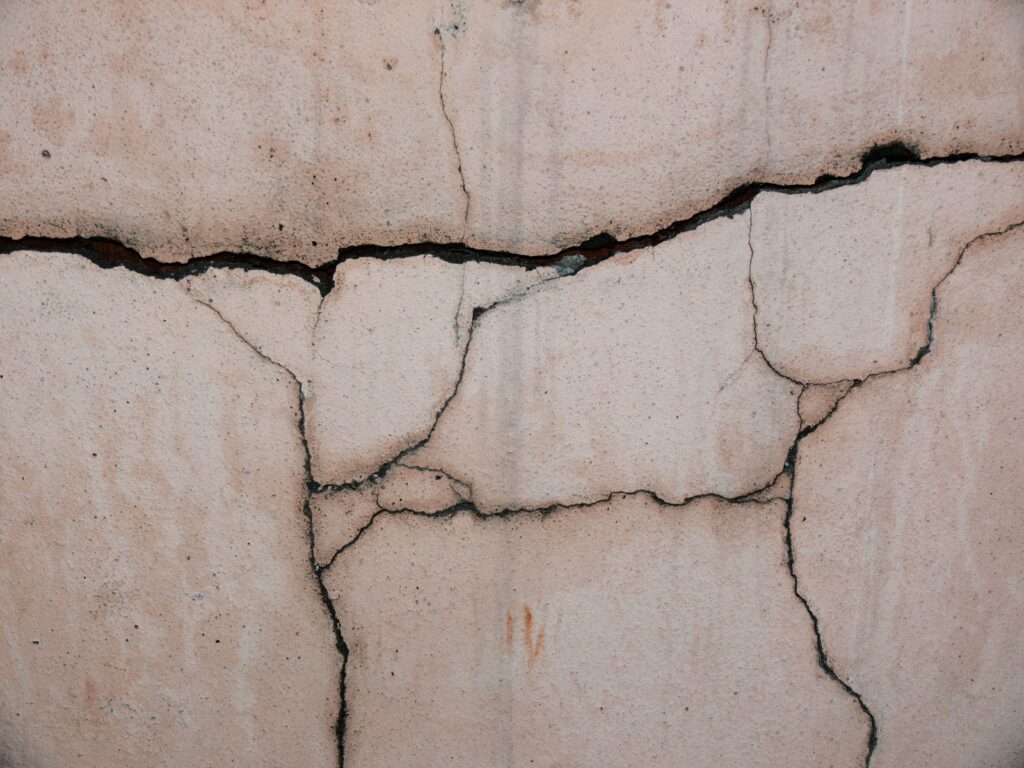

Foundation Cracks: Which Ones Are Serious?

Foundation cracks are common, but they do not all mean the same thing.

Hairline cracks

Hairline cracks can occur because of concrete shrinkage, temperature change, minor movement, or curing effects. If they are stable and dry, they are often less concerning.

Still, monitor them. A hairline crack that widens or leaks should not be ignored.

Vertical cracks

Vertical cracks in poured concrete walls are often less concerning than horizontal cracks, especially if narrow and stable. However, they may still allow water intrusion.

Diagonal cracks

Diagonal cracks can suggest differential settlement, especially when they start near doors, windows, corners, or changes in foundation geometry.

Stair-step cracks

Stair-step cracks in brick or concrete block walls are more concerning because they often follow mortar joints and may indicate uneven foundation movement.

Horizontal cracks

Horizontal cracks in basement or retaining-type foundation walls are more serious because they can indicate lateral soil pressure, hydrostatic pressure, or wall bowing.

For a deeper breakdown of crack types, injection methods, warning signs, and repair costs, read our foundation crack repair guide. Call a professional if a crack is widening, leaking, displaced, horizontal, stair-stepped, or appears together with uneven floors, sticking doors, wall movement, or exterior gaps.

---

What Causes Foundation Problems?

Foundation problems usually come from soil movement, water, poor construction, unsuitable design, structural loading, or a combination of these.

The foundation and the soil work together. If the soil changes volume, loses strength, washes out, compresses, or was poorly prepared, the foundation can move.

1. Expansive clay soil

Expansive clay is a major foundation issue in many parts of the United States, especially in areas such as Texas, Oklahoma, and parts of the South.

Clay soils can swell when wet and shrink when dry. This shrink-swell behaviour can cause heave, settlement, cracking, and differential movement. HUD-linked research on residential foundations on expansive soils discusses the role of soil-structure interaction and unsaturated soil mechanics in understanding residential foundation behaviour.

2. Poor drainage

Poor drainage is one of the most common foundation risk factors.

Problems include:

• short downspouts
• clogged gutters
• soil sloping toward the house
• ponding water
• poor surface runoff
• leaking plumbing
• water collecting against basement walls

HUD property guidance states that where foundation or bearing soils may be affected by seepage or frost, surface and subsurface water should be diverted to provide positive drainage away from the foundation.

3. Poorly compacted fill

If a house is built over poorly compacted fill, the soil may compress over time. This can cause settlement under slabs, footings, garages, patios, or additions.

4. Plumbing leaks

A leaking water line, sewer line, or irrigation system can change soil moisture near the foundation. In clay regions, this can trigger swelling or shrinkage.

5. Tree-related soil moisture changes

Tree roots do not usually “break” foundations directly in the simple way people imagine. The more common issue is soil moisture. Large trees close to a house can draw moisture from clay soils, contributing to shrinkage and differential movement in some situations.

6. Frost and cold-climate effects

In colder regions, frost penetration, freeze-thaw action, and poor drainage can affect foundation performance. Foundation depth and drainage design matter more in these areas.

7. Design or construction issues

Foundation distress can also result from:

• inadequate footing size
• shallow footings
• poor concrete quality
• weak reinforcement detailing
• poor site preparation
• unsuitable foundation type
• poor drainage design
• construction on problem soils without proper treatment

---

Why Foundation Problems Differ Across the US

A homeowner in Texas is not dealing with the same foundation risk profile as a homeowner in Michigan, Florida, or California.

Region	Common foundation concerns
Texas / Oklahoma / parts of the South	Expansive clay, drought-rain cycles, slab movement
Florida	Moisture, shallow groundwater, drainage, sinkhole-prone areas in some regions
Midwest / Northeast	Frost depth, basement walls, freeze-thaw, drainage
California	Seismic effects, hillside movement, expansive soils in some areas
Southeast	Clay soils, moisture variation, drainage, crawl spaces
Mountain / slope regions	Erosion, slope movement, retaining wall interaction

This is why local soil and climate matter. A repair method that makes sense in one region may not be the best first solution in another.

---

Foundation Settlement vs Heave vs Lateral Movement

Many homeowners call every foundation movement “settlement”, but that is not always correct.

Movement Type	What happens	Common cause	Typical signs
Settlement	Foundation moves downward	Soil compression, erosion, drying clay, poor compaction	Sloping floors, diagonal cracks, gaps
Heave	Foundation moves upward	Expansive clay swelling, frost, moisture increase	Slab uplift, floor ridges, upward distortion
Lateral movement	Wall moves sideways	Soil pressure, water pressure, poor drainage	Bowing walls, horizontal cracks

This distinction matters because the wrong diagnosis can lead to the wrong repair.

For example, installing piers may help when part of the foundation has settled. But if the main problem is moisture-driven clay heave, lifting alone may not solve the long-term movement. If the main issue is downward movement, sloping floors, or widening gaps, see our foundation settlement repair guide.

---

Main Foundation Repair Methods

Foundation repair is not one method. It is a category of possible repairs.

1. Crack repair

Crack repair may involve epoxy injection, polyurethane injection, sealants, patching, or waterproofing.

Best suited for:

• limited cracks
• leakage control
• non-active cracks
• minor non-structural issues

Not suitable when:

• movement is active
• wall displacement exists
• cracks keep reopening
• soil or drainage cause remains untreated

2. Drainage correction

Drainage correction may include:

• regrading soil away from the house
• extending downspouts
• cleaning gutters
• installing French drains
• correcting surface runoff
• fixing plumbing leaks
• reducing ponding water

Drainage correction is often one of the highest-value foundation protection measures.

3. Slabjacking or mudjacking

Mudjacking lifts a sunken concrete slab by pumping grout beneath it. It is often used for driveways, sidewalks, patios, garage slabs, and some floor slabs.

It can help with local slab settlement or voids but may not be suitable for serious structural foundation movement. For homes built on slab foundations, our concrete slab foundation repair guide explains slab cracks, lifting, void filling, and soil support problems in more detail.

4. Polyjacking

Polyjacking uses expanding polyurethane foam to lift slabs. It is lighter than traditional grout and useful in some slab-lifting applications.

The key question remains whether the soil problem is solved or still active.

5. Helical piers

Helical piers are steel shafts with helix-shaped plates screwed into the ground until suitable bearing resistance is reached. They can support foundations where deeper load transfer is needed.

6. Push piers

Push piers are steel sections driven into the ground using the structure’s weight as reaction. They transfer load to deeper bearing layers and are commonly used for settlement-related stabilisation.

7. Underpinning

Underpinning strengthens or extends the foundation support. It can involve piers, piles, concrete underpinning, or engineered systems.

It may be needed when:

• the foundation is inadequate
• loads have changed
• deeper support is required
• settlement has affected part of the structure

8. Wall anchors, bracing, and carbon-fibre reinforcement

For bowing basement walls, repair may involve wall anchors, steel beams, braces, carbon-fibre strips, or other lateral support systems.

This is different from settlement repair because the main issue is wall pressure, often from soil and water.

---

Foundation Repair Cost: What Affects the Price?

Foundation repair cost depends on the problem, not just the size of the house.

The same visible crack may require a minor sealant repair in one house and a major stabilisation plan in another.

Main cost factors include:

• foundation type
• severity of damage
• repair method
• number of piers or anchors
• soil conditions
• access around the house
• drainage correction
• engineering report
• permits
• interior demolition or finishes
• local labour rates
• warranty terms

US foundation repair ranges around $2,225 to $8,134, with average costs around $5,174–$5,175.

Repair Situation	Cost Level
Minor crack sealing	Lower
Drainage correction	Low to moderate
Local slab lifting	Moderate
Several piers or local underpinning	Moderate to high
Basement wall stabilisation	Moderate to high
Major structural lifting/stabilisation	High
Severe foundation replacement	Very high

---

How to Read a Foundation Repair Quote Like an Engineer

Before signing a repair contract, ask what the quote is actually solving.

A good foundation repair quote should answer these questions:

Question	Why it matters
What is the diagnosed cause of movement?	Repair should match cause
Is movement active or historic?	Active movement may need different action
What repair method is proposed?	Methods are not interchangeable
Why is this method suitable?	Prevents product-first selling
Is drainage included?	Water is often part of the problem
Is engineering review included?	Important for major repairs
Are permits needed?	Varies by location and scope
What is excluded?	Interior repairs, plumbing, drainage may be separate
What does the warranty cover?	Warranties often have conditions
What happens if movement continues?	Important for long-term risk

Be cautious if a contractor cannot explain the cause, only the product.

---

Contractor or Structural Engineer: Who Should You Call First?

A foundation contractor can inspect, quote, and perform repairs. Many are reputable and experienced. But a contractor also has a commercial interest in selling a repair system.

A structural engineer is usually paid for an independent opinion. The engineer may not perform the repair, but can help determine whether the problem is cosmetic, serviceability-related, structural, active, soil-related, drainage-related, or construction-related.

Situation	Best first call
One minor stable hairline crack	Monitor or local repair
Water pooling near foundation	Drainage contractor or inspection
Widening stair-step brick crack	Structural engineer
Horizontal basement wall crack	Structural engineer
Bowing foundation wall	Structural engineer urgently
Expensive pier quote	Independent engineer before signing
Buying a house with cracks	Structural engineer or specialist inspector
Several contractors disagree	Independent engineer
Crack plus sloping floor plus sticking doors	Structural engineer

For expensive repairs, an independent engineering opinion can protect you from paying for the wrong solution.

---

What Homeowners Should Do Before Paying for Foundation Repair

1. Photograph and date symptoms

Take photos of cracks, gaps, doors, floors, exterior walls, water ponding, and foundation areas.

2. Measure cracks where practical

Mark crack ends lightly and record whether the crack changes.

3. Check drainage first

Look at gutters, downspouts, grading, ponding water, irrigation, and plumbing leaks.

4. Look for a pattern

A single crack is different from multiple symptoms in one area.

5. Get more than one opinion

Compare recommendations, not only prices.

6. Ask whether the movement is active

Some problems need repair now. Others may be monitored before major work.

7. Read the warranty

Know what is covered, what is excluded, and what maintenance conditions apply.

---

Foundation Repair Red Flags

Be careful if you hear:

• “Every crack means foundation failure.”
• “You need to sign today.”
• “Drainage does not matter.”
• “This method fixes every foundation problem.”
• “No engineer is ever needed.”
• “We can quote major repair without checking the full house.”
• “The warranty covers everything.”
• “Soil conditions are not important.”

Foundation repair should be based on diagnosis, not fear.

---

Can Foundation Problems Be Prevented?

Not all foundation problems can be prevented, but risk can often be reduced.

Useful steps include:

• keep gutters clean
• extend downspouts away from the foundation
• maintain positive grading away from the house
• repair plumbing leaks quickly
• avoid water ponding near the foundation
• monitor cracks over time
• avoid extreme moisture differences around the foundation where practical
• be careful with large trees close to the house
• get suspicious symptoms assessed early

Drainage and moisture control are especially important in expansive clay regions. HUD guidance on unstable clays notes that expansive, highly plastic, or highly compressible clays may require special foundation treatment recommended by a geotechnical engineer.

---

When Foundation Repair Is Urgent

Get professional help sooner if you notice:

• rapidly widening cracks
• horizontal cracks in basement walls
• bowing or leaning foundation walls
• sudden floor slope changes
• several doors/windows suddenly jamming
• chimney separation
• visible displacement between parts of the structure
• water entering through foundation cracks
• movement after flooding, drought, excavation, or plumbing leaks

If there is any risk of collapse, major wall movement, or unsafe conditions, leave the area and contact a qualified local professional or relevant authority.

---

Final Engineering Advice

Foundation repair should not begin with panic or sales pressure. It should begin with observation, diagnosis, and understanding the cause of movement.

A crack is a symptom. A sticking door is a symptom. A sloping floor is a symptom. The real question is what those symptoms mean together.

If your home has minor isolated cracks, document and monitor them. If you see a pattern of movement, stair-step cracks, uneven floors, widening gaps, water problems, or wall bowing, get a professional assessment.

The best foundation repair is not always the most expensive one. It is the one that correctly addresses the cause of movement and reduces the chance of further damage.

FAQs

---
