Deck Joist Spacing Calculator
Most decks use joist spacing of 12, 16, or 24 inches on center. This deck joist spacing calculator estimates the number of joists needed across your deck width. Use it for layout planning, lumber estimates, and quote checks, then verify joist span, decking limits, and local code.
Inputs
Results
How to Use This Deck Joist Spacing Calculator
Use this deck joist spacing calculator to estimate how many joists you need across the deck width. Enter the deck width, choose the joist spacing, and review the estimated joist count.
This helps you plan the framing layout, check a lumber list, or compare a contractor quote. It does not size the joists. Joist spacing and joist span are different.

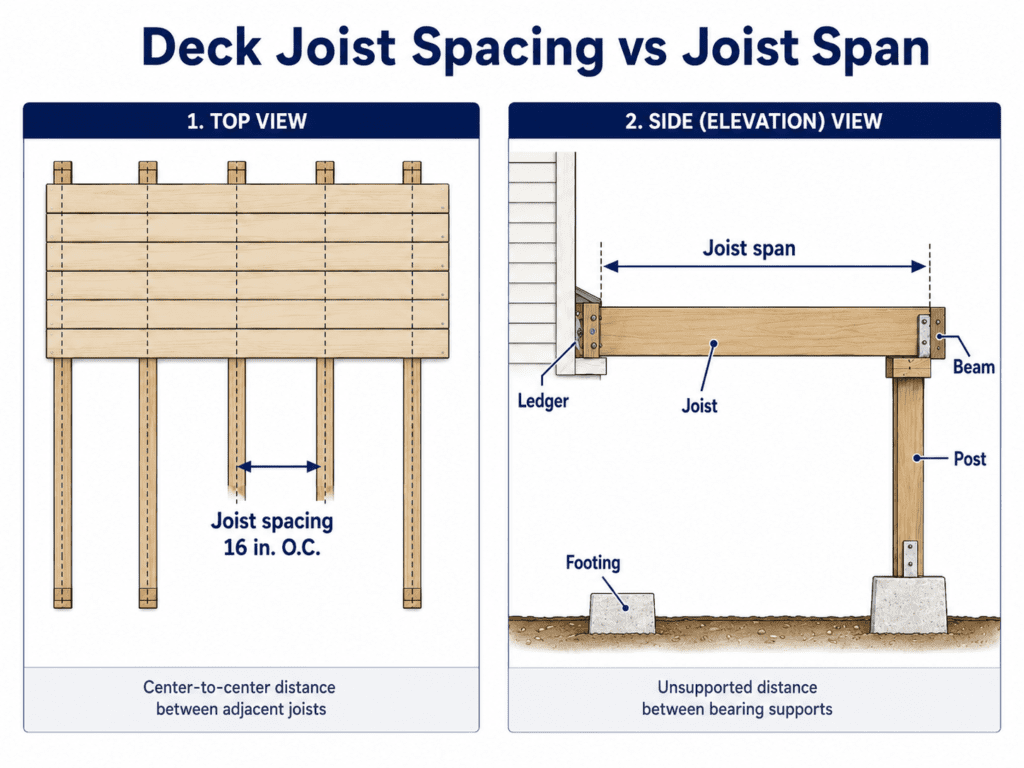

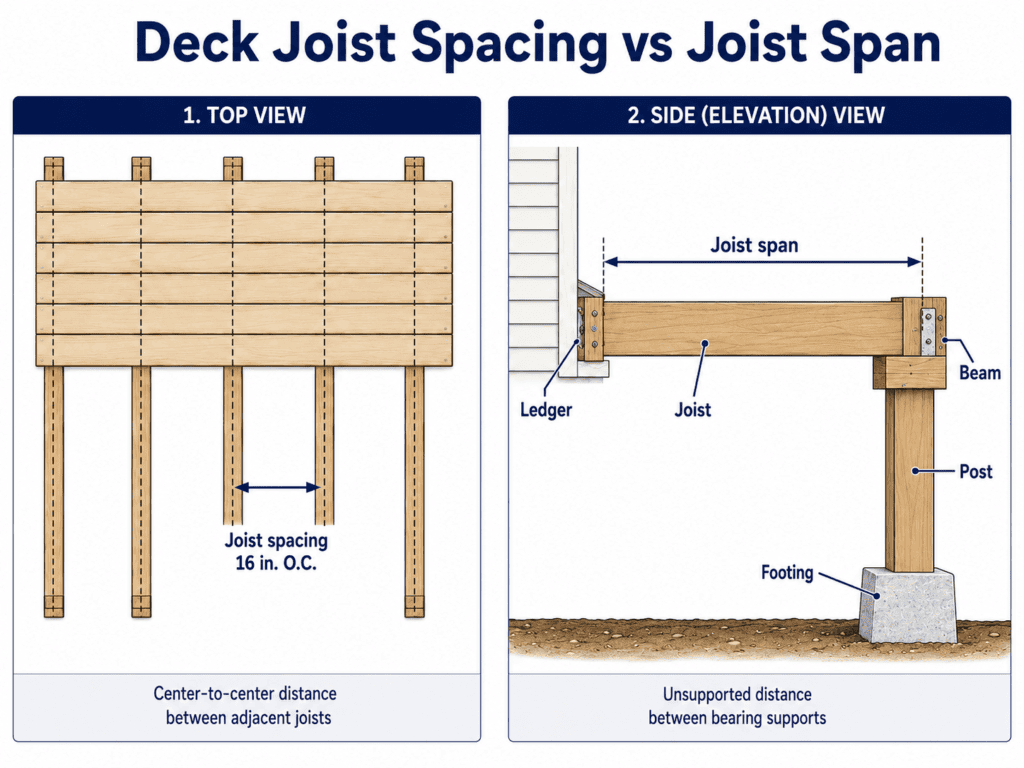

Joist spacing is the distance from one joist to the next, measured center to center. Joist span is the distance a joist runs between supports, such as from the ledger board to the beam. Difference is shown in the infographic below.
For the full deck frame, joists work together with beams, posts, footings, rim boards, blocking, ledgers, hangers, and connectors. If your deck uses concrete piers or post footings, use the concrete calculator to estimate concrete volume before ordering bags or ready-mix concrete.
How to Read Your Result
The calculator gives a practical joist count based on your selected on-center spacing. “On center” means the measurement runs from the centerline of one joist to the centerline of the next joist.
For example, 16 inches on center means each joist centerline sits 16 inches from the next one. The calculator rounds the layout so the deck surface has support across the full width.
Allow extra material for rim joists, blocking, waste, board joints, stair framing, picture-frame borders, and openings. A real deck frame often needs more lumber than the basic joist count.
Common Deck Joist Spacing
| Deck layout or material | Common joist spacing |
|---|---|
| Standard wood decking | 16 in. O.C. |
| Diagonal wood decking | 12 in. O.C. |
| Many composite deck boards | 12 in. or 16 in. O.C. |
| Stair treads | Often 12 in. O.C. |
| Heavy-use deck areas | 12 in. O.C. |
| Some 2x wood decking | 24 in. O.C. where allowed |
The deck framing guidance in this article is based on IRC Section R507 for decks, prescriptive deck construction guidance from the American Wood Council, and decking manufacturer installation requirements.
Use this table for planning only. Final spacing depends on deck board thickness, board direction, joist size, wood species, joist span, design load, manufacturer limits, and local code.
Why Joist Spacing Matters
Deck joist spacing controls how well the deck boards are supported. If joists sit too far apart, the deck surface can feel soft, bouncy, or uneven. Flexible boards may sag between supports, and fasteners may loosen sooner.
Tighter spacing gives the deck surface a stiffer feel, but it also increases lumber, hardware, and labor. That is why many simple wood decks start at 16 inches on center, then move to 12 inches on center when the decking layout or material requires it.
When to Use 12 Inches On Center
Use 12-inch joist spacing when the deck boards need extra support. This is common with diagonal decking, many composite deck boards, PVC decking, stair treads, hot tub areas, outdoor kitchens, heavy planters, and high-traffic areas.
Diagonal decking needs special attention. When boards cross the joists at an angle, the effective support distance increases. Do not assume diagonal deck boards can use the same joist spacing as straight boards.
What Affects Deck Joist Spacing?
Several factors control the final deck framing layout:
- Decking material
- Deck board thickness
- Board direction
- Joist size
- Joist span
- Wood species and grade
- Design live load
- Beam and post layout
- Local building code
- Manufacturer installation limits
The main point is simple. Deck joist spacing supports the deck boards. Joist span controls the structural capacity of the joists.
Related Deck Layout Tools
This calculator focuses on joist layout and joist count. For the rest of the deck frame, you may also need tools for post spacing, footing layout, and concrete volume.
Guardrail layout is separate. Spindle and baluster spacing follow guardrail opening rules, not deck joist spacing rules.
Methodology
This calculator divides the deck width by the selected on-center spacing and rounds the result to provide joist support across the deck width. It assumes a rectangular deck area with parallel joists and standard rim framing.
Use the result for early planning and material estimating. Do not use it as a structural design approval. For permit drawings or structural checks, use code-approved span tables or consult a qualified professional.
Assumptions
This calculator assumes:
- Joists run in one direction
- Spacing is measured center to center
- The deck area is rectangular
- Standard rim joists are used
- Blocking and special framing are added separately
- Local code and manufacturer limits are checked separately
Common Mistakes to Avoid
Do not measure the clear gap between joists and call it joist spacing. Joist spacing is measured center to center.
Do not use 24 inches on center unless the decking material and local code allow it.
Do not install composite decking without checking the manufacturer’s spacing table.
Do not forget blocking where deck boards end, where picture-frame borders are used, or where framing changes direction.
FAQs
What is the best deck joist spacing?
For many residential decks, 16 inches on center is common. Use 12 inches on center for diagonal decking, many composite boards, stair treads, and areas where a stiffer deck surface is needed.
Is 12-inch joist spacing better than 16-inch spacing?
It gives more board support and a stiffer deck surface, but it uses more lumber and hardware. Use it when the decking material, board direction, or load condition requires tighter spacing.
Can deck joists be 24 inches apart?
Sometimes, but only when the decking material, board thickness, board direction, and local code allow it. Many composite deck boards do not allow 24-inch joist spacing.
Does this deck spacing calculator size the joists?
No. It estimates joist count and layout spacing. Use a joist span table to size the joists and check beams, posts, footings, and ledger connections.
Is deck joist spacing the same as deck post spacing?
No. Joist spacing controls the support under the deck boards. Post spacing controls the support under the beams. Both affect deck performance, but they are different parts of the framing system.
